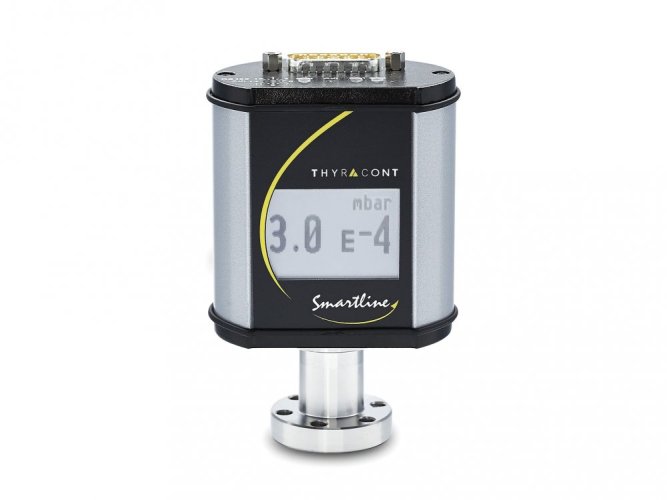

Pirani Pt/Rh filament, 1000-5e-4 mbar, metal sealed, DN16CF, display

Pirani Pt/Rh filament, 1000-5e-4 mbar, metal sealed, DN16CF, display

Thyracont

The processor controlled VCP Pirani vacuum transducer with robust, elastic helix filament is ideal for precise measurements in demanding applications with aggressive media.

Product code: VCP64DLShipping and Payment

574 EUR excl. VAT 694,54 EUR incl. VAT

Not in stock (5-7 days) Watch availability - if the goods are not in stock, we normally deliver them in the usual quantity within 7 days from the date of receipt of the order
ks
Thyracont

The processor controlled VCP Pirani vacuum transducer with robust, elastic helix filament is ideal for precise measurements in demanding applications with aggressive media.

Product code: VCP64DLShipping and Payment

Add to favourites Add to compare list
Parameters
Measurement principles Pirani
Gas dependency depending on gas type
Measuring range mbar 0-10V Output
Measurement range Torr 750 – 5e-4 Torr
Measuring range Torr 750 - 5e-4 Torr
Max, Overpressure resistance 10 bar abs., 16 bar abs. with CERT31P
Accuracy 1000 – 10 mbar: ca. 30 % f. r. | 10 – 0.01 mbar: 10 % f. r.
Response time 40 ms
Repeatability 10 – 0.01 mbar: 5 % f. r.
Materials in contact with vacuum Stainl. steel 1.4307, platinum /rhodium, nickel, glass
Operating temperature +5…+60 °C
Storage temperature -40…+65 °C
Voltage supply 20 – 30 VDC
Serial interface RS485: 9.6 kBd to 115 kBd, 8 databit, 1 stopbit, no parity
Electrical connection Max. 2.5 W, add. 0.8 W f. EtherCAT/relays/ LCD, add. 1.6 W for Profinet
Article Number (choice of vacuum connection) DN 16 CF-F (VCP64), DN 16 ISO-KF (VCP63)
Display LCD graphic display, back-lit
Dimensions 99 x 69 x 48 mm (VCP63)
Protection class IP40, IP54 mit connector XB15SL05
Weight (kg) 190 g (VSP63)
Output Signal SL 0 – 10 VDC, min. 10 kΩ, Messber. 2,199 – 7,801 VDC, log. (Default) ausgen. EtherCAT, Profinet
Serial interface RS485: 9.6 kBd to 115 kBd, 8 databit, 1 stopbit, no parity
Switching output 2x relay, pot. free, 50 VAC / 2 Aor 30 VDC / 2 A, max. 60 VA, except EtherCAT and Profinet
Electrical connection SubD 15pole, male
Bake out temperature Max. 150°C at the flange (voltage supply switched-off)
max. overload with CERT31P up to 16 bar abs.
Category Vacuum transducer
Output signal 0-10 V
Serial interfaces RS485
