Pirani, 1000-1e-4 mbar, metal sealed, DN16KF, display :: Activair

Pirani, 1000-1e-4 mbar, metal sealed, DN16KF, display

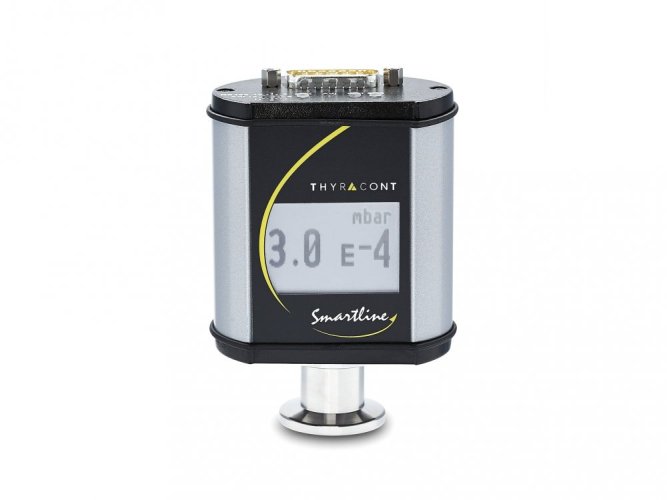

The processor controlled VSP Pirani vacuum transducer with robust helix filament is ideal for precise measurements in the fine vacuum range.

Product code: VSP63DLShipping and Payment

477 EUR excl. VAT 577,17 EUR incl. VAT

The processor controlled VSP Pirani vacuum transducer with robust helix filament is ideal for precise measurements in the fine vacuum range.

Product code: VSP63DLShipping and Payment

Parameters

Measurement principles	Pirani
Gas dependency	depending on gas type
Measuring range mbar	1000 - 1e-4 mbar
Measurement range Torr	750 – 1e-4 Torr
Measuring range Torr	750 - 1e-4 Torr
Max, Overpressure resistance	10 bar abs., 16 bar abs. with CERT31P
Accuracy	1000 – 20 mbar: ca. 30 % f. r. \| 20 – 0.002 mbar: 10 % f. r.
Response time	40 ms
Repeatability	20 – 0.002 mbar: 2 % f. r.
Materials in contact with vacuum	Stainless steel 1.4307, tungsten, nickel, glass
Operating temperature	+5…+60 °C
Storage temperature	-40…+65 °C
Voltage supply	20 – 30 VDC
Serial interface	RS485: 9.6 kBd to 115 kBd, 8 databit, 1 stopbit, no parity
Electrical connection	SubD 15pole, male
Article Number (choice of vacuum connection)	DN 16 CF-F (VSP64), DN 16 ISO-KF (VSP63)

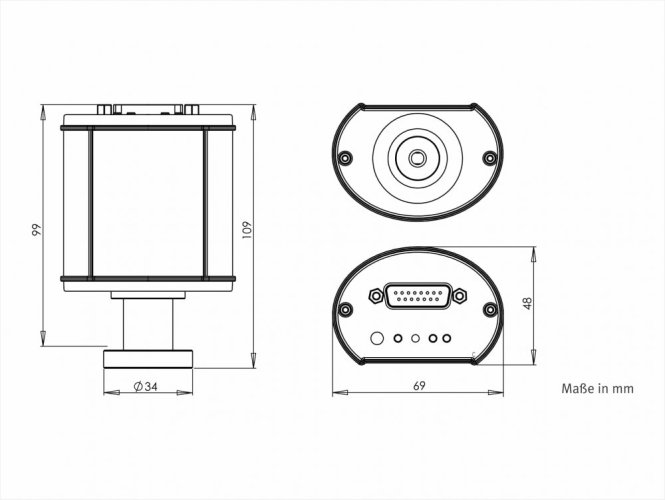

Dimensions	99 x 69 x 48 mm (VSP63)
Protection class	IP40, IP54 mit connector XB15SL05
Weight (kg)	190 g (VSP63)
Output Signal SL	0 – 10 VDC, min. 10 kΩ, measuring range 1,5 – 8,58 VDC, log. except EtherCAT, Profinet
Switching output	2x relay, pot. free, 50 VAC / 2 Aor 30 VDC / 2 A, max. 60 VA, except EtherCAT and Profinet
Electrical connection	SubD 15pole, male
Bake out temperature	Max. 150°C at the flange (voltage supply switched-off)
max. overload with CERT31P	up to 16 bar abs.
Category	Vacuum transducer
Output signal	0-10 V
Serial interfaces	RS485
