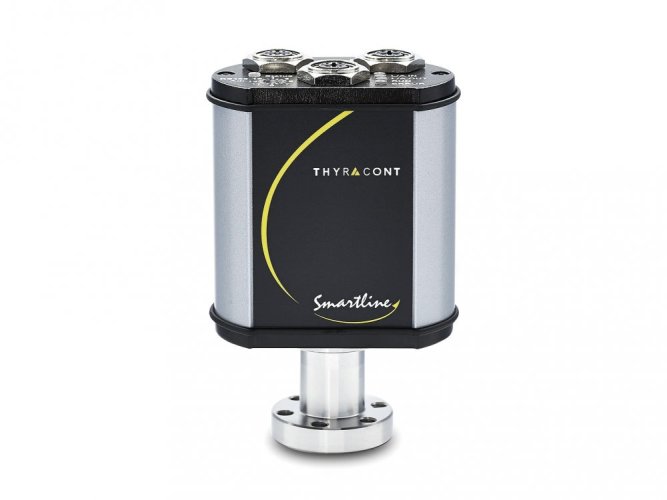

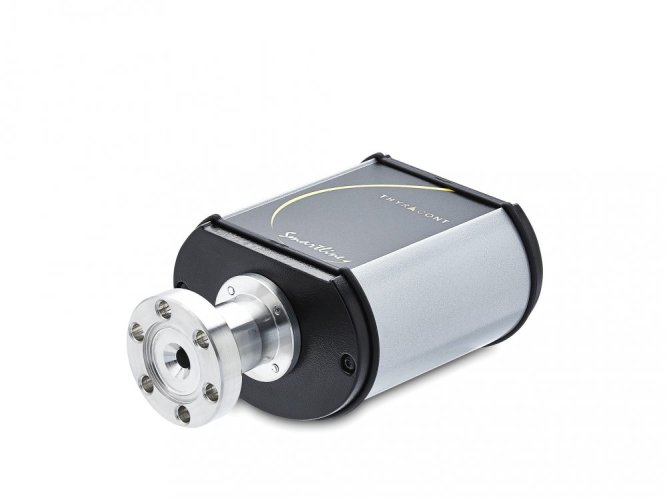

Pirani, 1000-1e-4 mbar, metal sealed,DN16CF, EtherCAT

Pirani, 1000-1e-4 mbar, metal sealed,DN16CF, EtherCAT

Thyracont

The processor controlled VSP Pirani vacuum transducer with robust helix filament is ideal for precise measurements in the fine vacuum range.

Product code: VSP64EShipping and Payment

703 EUR excl. VAT 850,63 EUR incl. VAT

Not in stock (5-7 days) Watch availability - if the goods are not in stock, we normally deliver them in the usual quantity within 7 days from the date of receipt of the order
ks
Thyracont

The processor controlled VSP Pirani vacuum transducer with robust helix filament is ideal for precise measurements in the fine vacuum range.

Product code: VSP64EShipping and Payment

Add to favourites Add to compare list
Parameters
Measurement principles Pirani
Gas dependency depending on gas type
Measuring range mbar 1000 - 1e-4 mbar
Measurement range Torr 750 – 1e-4 Torr
Measuring range Torr 750 - 1e-4 Torr
Max, Overpressure resistance 10 bar abs., 16 bar abs. with CERT31P
Accuracy 1000 – 20 mbar: ca. 30 % f. r. | 20 – 0.002 mbar: 10 % f. r.
Response time 40 ms
Repeatability 20 – 0.002 mbar: 2 % f. r.
Materials in contact with vacuum Stainless steel 1.4307, tungsten, nickel, glass
Operating temperature +5…+60 °C
Storage temperature -40…+65 °C
Voltage supply 20 – 30 VDC
Serial interface RS485: 9.6 kBd to 115 kBd, 8 databit, 1 stopbit, no parity
Electrical connection 1x M12 A / 2x M12 D, female

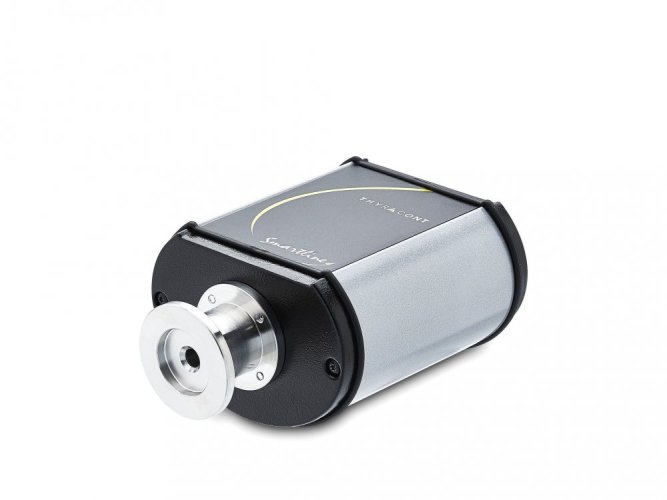

Article Number (choice of vacuum connection) DN 16 CF-F (VSP64), DN 16 ISO-KF (VSP63)

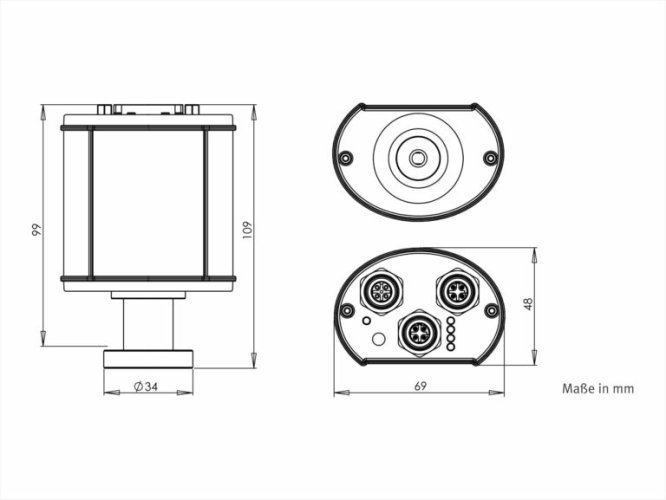

Dimensions 99 x 69 x 48 mm (VSP63)
Protection class IP54
Weight (kg) 190 g (VSP63)
Power consumption Max. 2.5 W, add. 0.8 W f. EtherCAT/relays/ LCD, add. 1.6 W for Profinet
Bake out temperature Max. 150°C at the flange (voltage supply switched-off)
max. overload with CERT31P up to 16 bar abs.
Category Vacuum transducer
Serial interfaces EtherCAT, RS485
Download
man_vspE-vcpE.pdf (pdf, 8.7 MB)
