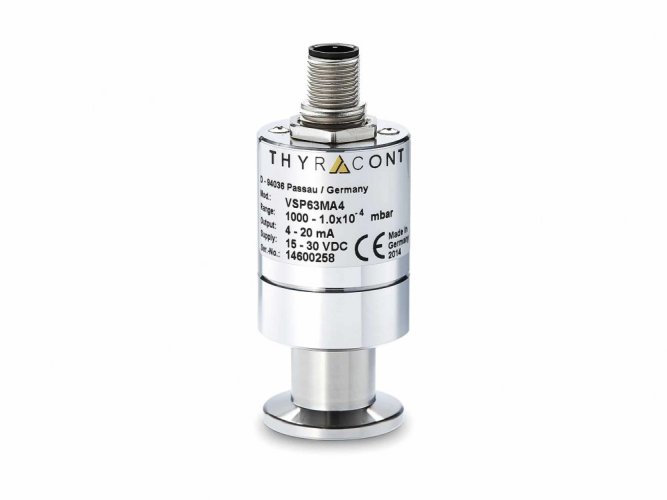

Pirani, 1000-1e-4 mbar, 4-20 mA, logarithmic, metal sealed, DN16KF

The VSP63 is based on a new, patented measurement principle. The well proven Thyracont impulse Pirani sensor provides a larger measuring range with higher resolution. The advanced VSP63 uses an optimized temperature compensation. Accuracy and stability have been further improved.

Product code: VSP63MA4Shipping and Payment

338 EUR excl. VAT 408,98 EUR incl. VAT

Product code: VSP63MA4Shipping and Payment

Discussion

Parameters

Gas dependency	depending on gas type
Measuring range mbar	1000 - 1e-4 mbar
Measurement range Torr	750 – 1e-4 Torr
Measuring range Torr	750 - 1e-4 Torr
Max, Overpressure resistance	10 bar abs., 16 bar abs. with CERT31P
Accuracy	1000 – 20 mbar: ca. 30 % f. r. \| 20 – 0.002 mbar: 10 % f. r.
Response time	< 200 ms
Repeatability	20 – 0.002 mbar: 2 % f. r.
Operating temperature	+5…+60 °C
Storage temperature	-20…+70 °C
Voltage supply	15 – 30 VDC
Electrical connection	M12 A, 5pin, male, lockable
Article Number (choice of vacuum connection)	Stainl. steel small flange DN 16 ISO-KF
Dimensions	80 x 30 x 30 mm
Protection class	IP54
Weight (kg)	120 g
Bake out temperature	Max. 150°C at the flange (transducer separated from voltage supply)
Category	Vacuum transducer
Output signal	4-20 mA
