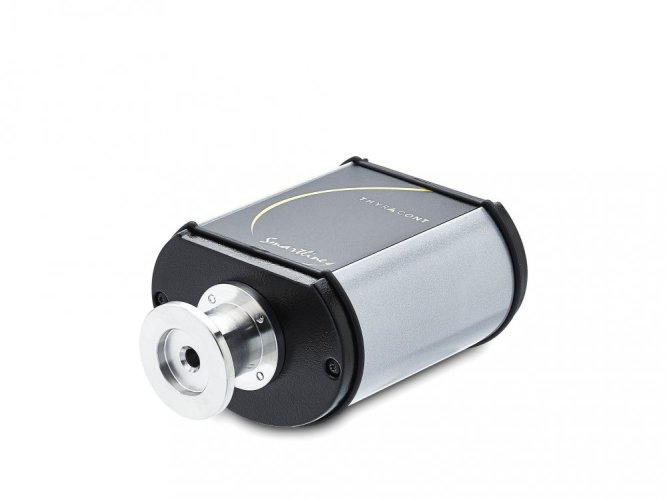

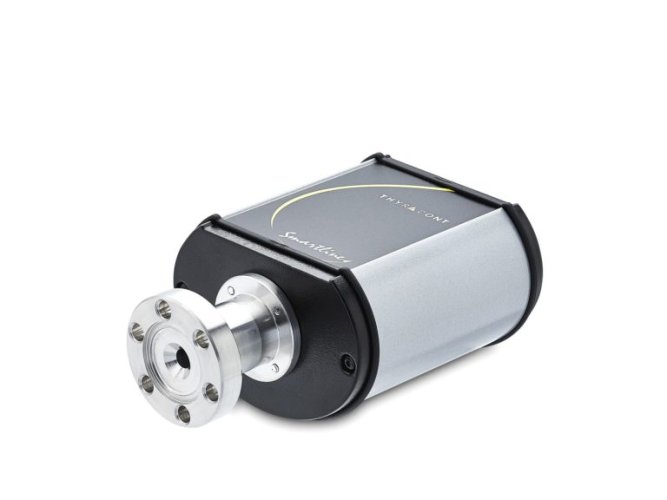

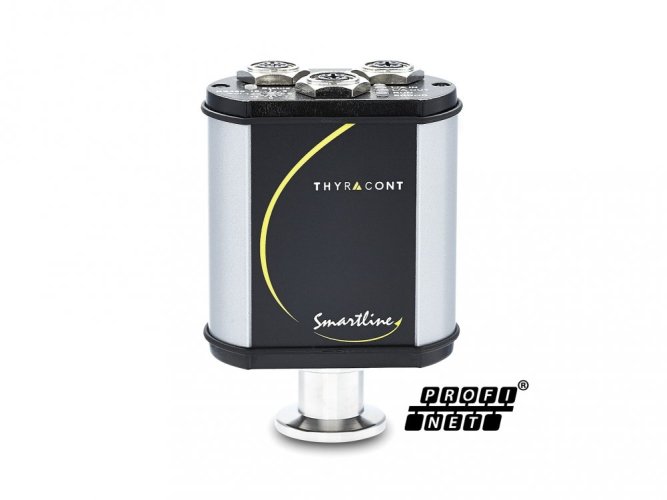

Piezo / Pirani, 1200-1e-4 mbar, metal sealed, DN16CF, Profinet

Piezo / Pirani, 1200-1e-4 mbar, metal sealed, DN16CF, Profinet

Thyracont

The combination of piezo and Pirani sensor in the digital VSR vacuum transducer ensures high precision and excellent resolution in the rough and fine vacuum range.

Product code: VSR54PNShipping and Payment

933 EUR excl. VAT 1 128,93 EUR incl. VAT

Not in stock (5-7 days) Watch availability - if the goods are not in stock, we normally deliver them in the usual quantity within 7 days from the date of receipt of the order
ks
Thyracont

The combination of piezo and Pirani sensor in the digital VSR vacuum transducer ensures high precision and excellent resolution in the rough and fine vacuum range.

Product code: VSR54PNShipping and Payment

Add to favourites Add to compare list
Parameters
Measurement principles Combination sensors, Piezo, Pirani
Gas dependency depending on gas type, independent of gas type (Piezo)
Measuring range mbar 0-10V Output
Measurement range Torr 900 – 1e-4 Torr
Max, Overpressure resistance 4 bar abs.
Accuracy 1200 – 40 mbar: 0.3 % f.s. | 40 – 2e-3 mbar: 10 % f.r.
Response time 40 ms
Repeatability 1200 – 40 mbar: 0.1% f.s. | 40 – 1e-2 mbar: 2 % f.r.
Materials in contact with vacuum Stainless steel 1.4307, tungsten, nickel, glass, gold, silicon oxide
Operating temperature +5…+50°C (Profinet)
Storage temperature -40…+65 °C
Voltage supply 20 – 30 VDC
Serial interface RS485: 9.6 kBd to 115 kBd, 8 databit, 1 stopbit, no parity
Electrical connection 1x M12 A / 2x M12 D, female
Article Number (choice of vacuum connection) DN 16 CF-F (VSR54), DN 16 ISO-KF (VSR53)

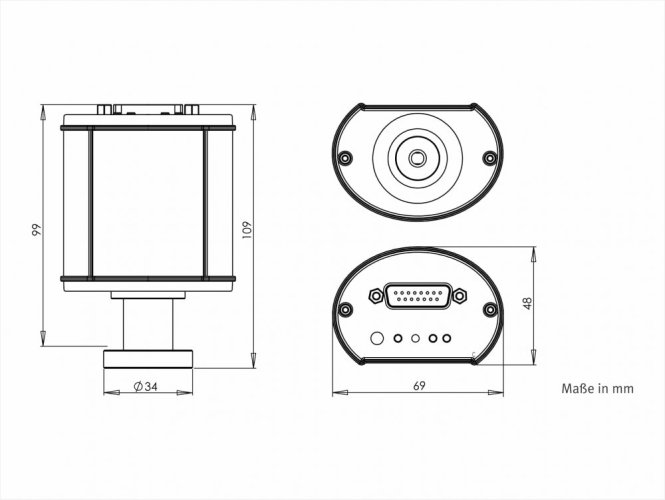

Dimensions 99 x 69 x 48 mm (VSR53)
Protection class IP54
Weight (kg) 195 g (VSR53)
Power consumption Max. 2.5 W, add. 0.8 W f. EtherCAT/relays/ LCD, add. 1.6 W for Profinet
Category Vacuum transducer
Serial interfaces Profinet, RS485
Download
man_vsrE-vcrE.pdf (pdf, 8.8 MB)
VSR-SL-vacuum-transducer-Piezo-Pirani-en.pdf (pdf, 1.7 MB)
man_vsr-vcr.pdf (pdf, 13.3 MB)
