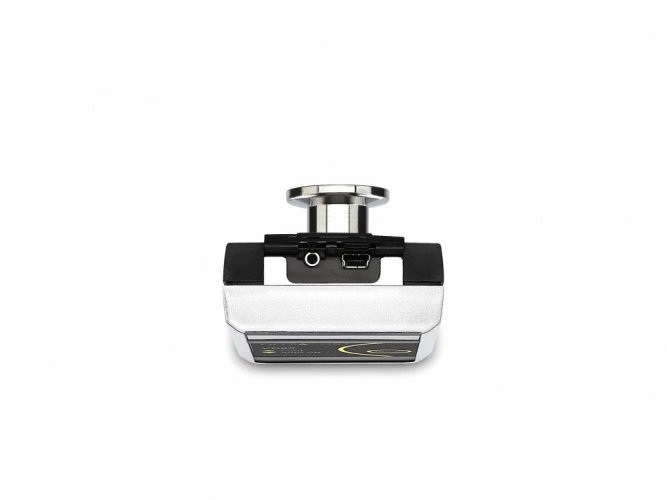

Piezo, 1600-1 mbar, DN16KF with G1/4 female thread, USB-interface


Thyracont

The versatile VD81 digital vacuum meter with data logger and USB interface measures absolute pressure in the rough vacuum range with a resistant Piezo sensor. More

Product code: VD81Shipping and Payment

398 EUR excl. VAT 481,58 EUR incl. VAT

Not in stock (5-7 days) Watch availability - if the goods are not in stock, we normally deliver them in the usual quantity within 7 days from the date of receipt of the order
ks
Thyracont

The versatile VD81 digital vacuum meter with data logger and USB interface measures absolute pressure in the rough vacuum range with a resistant Piezo sensor. More

Product code: VD81Shipping and Payment

Overview VD81 Piezo vacuum meter

  • Chemically resistant: Chemically resistant ceramic sensor with FKM sealing, suitable for rough industry environment
  • Robust: Insensitive against contamination
  • Fast: Adjustable min. logging rate of 50 ms for fast processes, e. g. for the area of vacuum packaging
  • Versatile: Gas-type independent measurement

Overview VD8 vacuum meters:

  • Variable: VD8 compact vacuum meters can be used as a portable instrument or for permanent installation in vacuum facilities. The gauges can be operated by a battery or a plugin power supply
  • Data logger: Integrated data logger for up to 2000 measurement values
  • Flexible connection: VD8 vacuum meters can be placed directly into a vacuum chamber, connected to an appliance with their flange or with a suitable adaptor
  • Min/Max memory function: Storage of minimum and maximum pressures achieved during measurement
  • Long battery livetime: Due to cycled measurements, the compact vacuum meter reaches a high battery lifetime; the user can choose between automatic switch off (time adjustable) for battery saving or continuous operation
  • Pressure units: mbar, Torr, hPa
  • Data export: USB interface for easy push button data transfer to PCs, but no PC connection is necessary during measurements
  • VacuGraphTM Windows Software: To visualize, analyze and save measurements on a PC (lite version free of charge)
Parameters
Measurement principles Piezo
Gas dependency independent of gas type (Piezo)
Measurement range Torr 1200 – 1 Torr
Measuring range Torr 1200 - 1 Torr
Max, Overpressure resistance 4 bar abs.
Accuracy 0.3 f.s.
Resolution 1 mbar
Measurement rate 1.0 s (down to 0.05 s if logging rate is set accordingly)
Logging rate 50 ms … 6000 s
Materials in contact with vacuum Stainless steel, 1.4307, Al₂O₃, ceramic, FKM
Operating temperature +5…+50 °C
Storage temperature -20…+60 °C
Voltage supply 9 V battery or 12…15 VDC external
Operating time Li-battery
Serial interface Mini-USB, Type B, 5pin, female, Virtual Com Port protocol
Electrical connection Mini-jack 2.5 mm for plug-in power supply
Article Number (choice of vacuum connection) stainless steel small flange DN 16 ISO-KF with G1/4- female thread or screw-in hose nozzle (accessory VD81SW1)
Display LCD 12 mm

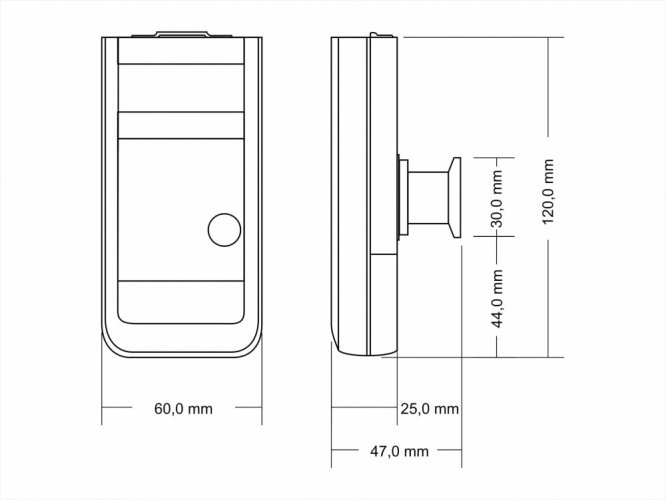

Dimensions 25 × 16 × 9 cm
Protection class IP40
Weight (kg) 0,2
Power consumption Approx. 2 mW (clocked)
Category Data logger, Vacuum meter
