Piezo, 1200-5 mbar, DN16KF, electrical connection Phoenix screw terminals

Piezo, 1200-5 mbar, DN16KF, electrical connection Phoenix screw terminals

Thyracont

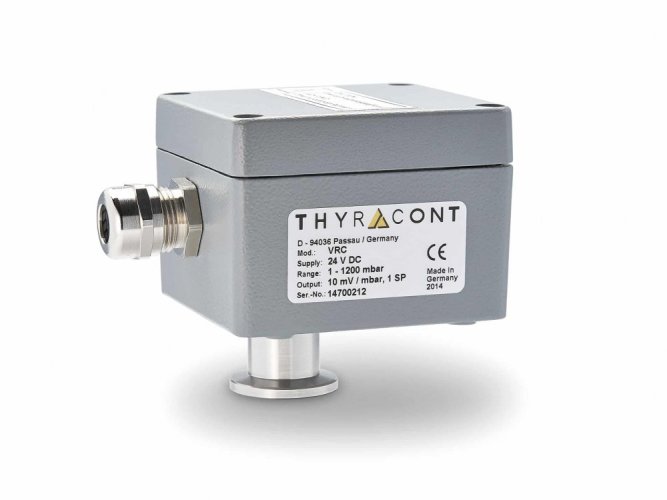

The VRC electronic vacuum switch can be used for directly switching a pump or valve in the rough vacuum range. An additional recorder output allows a continuous monitoring of the process pressure.

Product code: VRCShipping and Payment

383 EUR excl. VAT 463,43 EUR incl. VAT

Not in stock (5-7 days) Watch availability - if the goods are not in stock, we normally deliver them in the usual quantity within 7 days from the date of receipt of the order
ks
Thyracont

The VRC electronic vacuum switch can be used for directly switching a pump or valve in the rough vacuum range. An additional recorder output allows a continuous monitoring of the process pressure.

Product code: VRCShipping and Payment

Add to favourites Add to compare list
Parameters
Measurement principles Piezo
Gas dependency independent of gas type
Accuracy 0.3 f.s.
Response time < 20 ms
Materials in contact with vacuum Stainless steel, 1.4305, Al₂O₃, ceramic, FKM
Operating temperature 0…+40°C
Storage temperature -10…+60 °C
Voltage supply 18 – 30 VDC
Electrical connection Phoenix screw terminals
Article Number (choice of vacuum connection) stainless steel small flange DN 16 ISO-KF with G1/4- female thread
Protection class IP54
Weight (kg) 230 g (battery included)
Power consumption Without relay 50 mA, with relay 70 mA
Category Vacuum switch
Download
man_vrc.pdf (pdf, 1.4 MB)
VRC-vacuum-switch-Piezo-en.pdf (pdf, 1.7 MB)
VRC.step (step, 688.9 kB)
