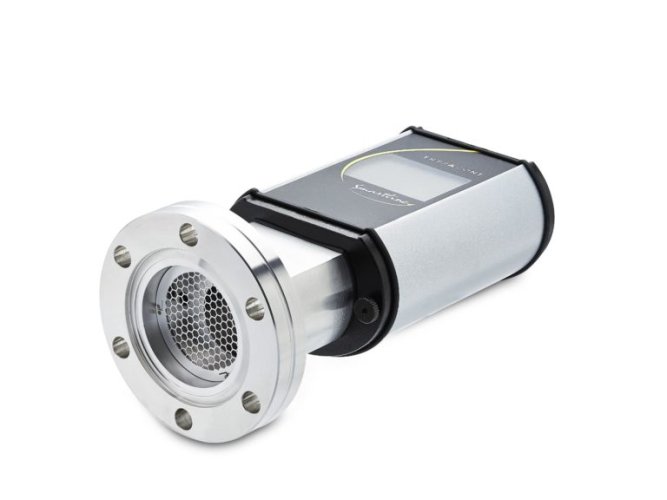

The digital combination vacuum transducer VSH (Pirani/hot cathode) measures absolute pressure from atmospheric pressure to ultrahigh vacuum.
Product code: VSH89DLShipping and Payment
1 346 EUR excl. VAT 1 628,66 EUR incl. VAT
![Thyracont Thyracont](https://activair-cz.s15.cdn-upgates.com/_cache/a/c/acf4fa950141eb2c1abc505aa023a6bc-thyracont-logo.png)
The digital combination vacuum transducer VSH (Pirani/hot cathode) measures absolute pressure from atmospheric pressure to ultrahigh vacuum.
Product code: VSH89DLShipping and Payment
Parameters

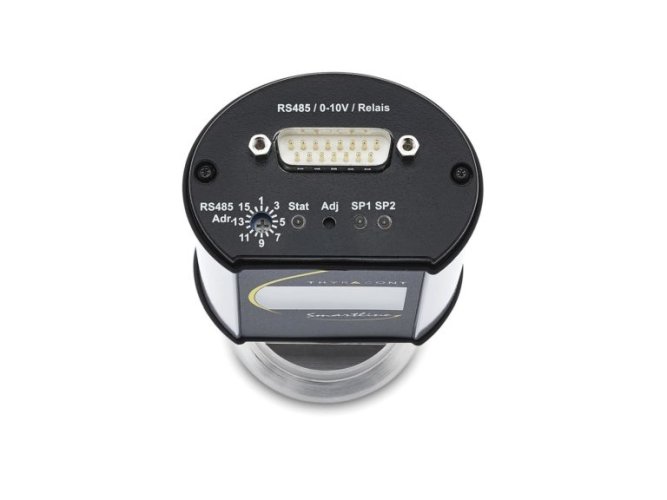

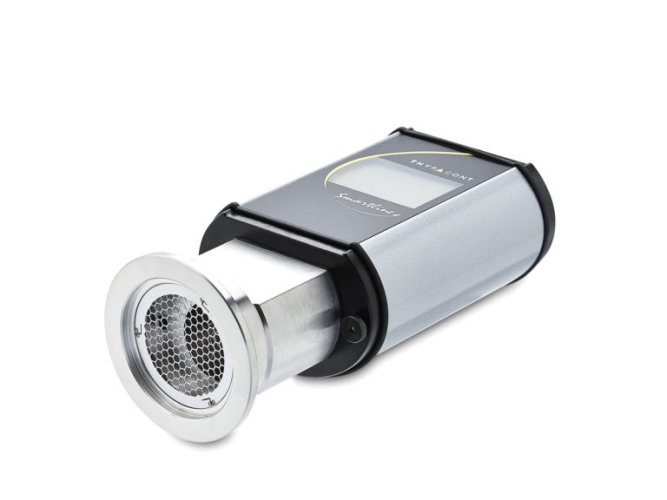

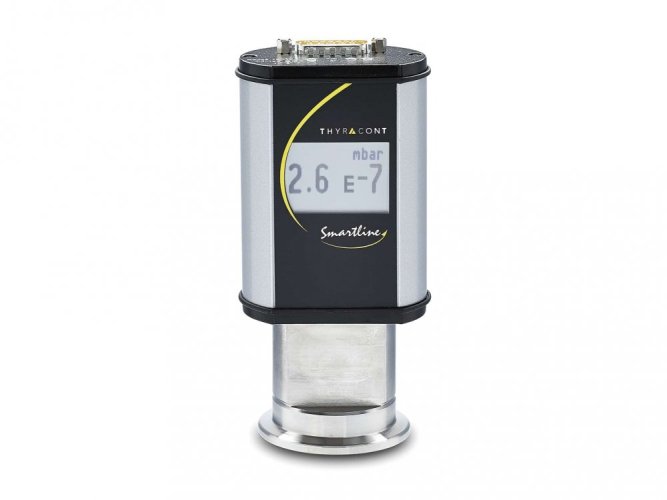

Measurement principles | Combination sensors, Bayard Alpert/Hot Cathode |
---|---|
Gas dependency | depending on gas type |
Measuring range mbar | 1000 - 5e-10 mbar |
Measurement range Torr | 750 – 5.0e-10 Torr |
Measuring range Torr | 750 - 5.0e-10 Torr |
Max, Overpressure resistance | 4 bar abs. |
Accuracy | 1000 … 10 mbar: ca. 30 % f. r. | 10 … 1e-8 mbar: 10 % f. r. |
Response time | 50 ms (switching of emission current |
Repeatability | 10 – 1e-2 mbar: 2 % f. r. | 1e-2 – 1e-8 mbar: 5% f. r. |
Materials in contact with vacuum | Stainl. steel 1.4307, tungsten, nickel, glass, platinum, iridium, yttria oxide |
Operating temperature | +5…+60 °C |
Storage temperature | -40…+65 °C |
Voltage supply | 20 – 30 VDC |
Serial interface | RS485: 9.6 kBd to 115 kBd, 8 databit, 1 stopbit, no parity |
Electrical connection | SubD 15pole, male |
Article Number (choice of vacuum connection) | DN 25 ISO-KF (VSH87), DN 40 CF-F (VSH89), DN 40 ISO-KF (VSH88) |
Display | LCD graphic display, back-lit |

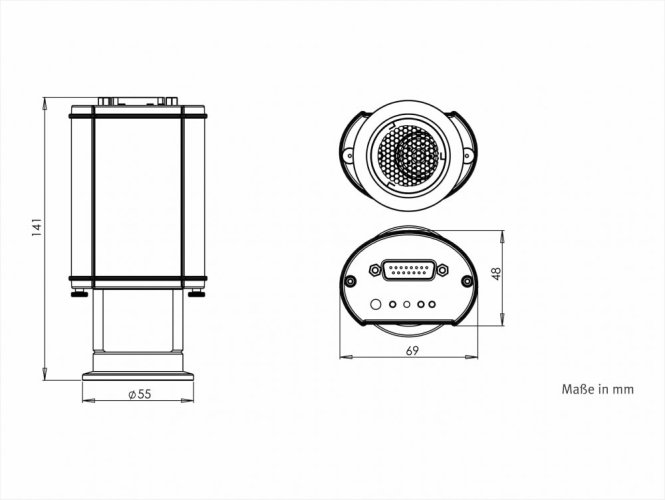

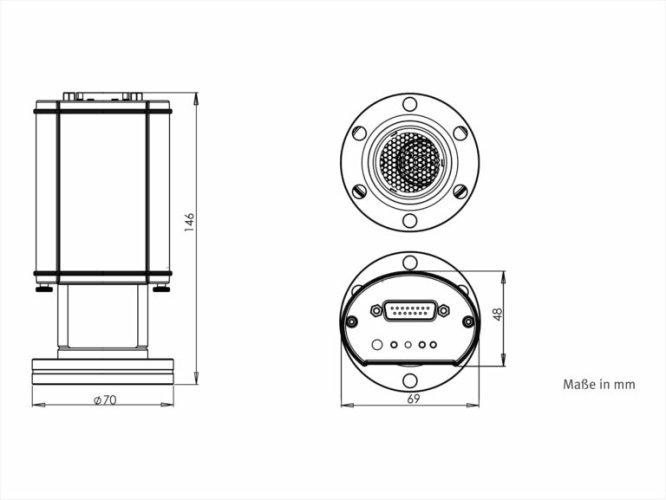

Dimensions | 141 x 69 x 48 mm (VSH88) |
Protection class | IP40, IP54 mit connector XB15SL05 |
Weight (kg) | 475 g (VSH88) |
Output Signal SL | 0 – 10 VDC, min. 10 kΩ, measuring range 1,219 – 8,6 VDC, log. except EtherCAT, Profinet |
Serial interface | RS485: 9.6 kBd to 115 kBd, 8 databit, 1 stopbit, no parity |
Switching output | 2x relay, pot. free, 50 VAC / 2 Aor 30 VDC / 2 A, max. 60 VA, except EtherCAT and Profinet |
Electrical connection | SubD 15pole, male |
Bake out temperature | Max. 180°C at the flange (voltage supply switched-off) |
Filaments / anodes | Yttria coated iridium |
Emission current | 9 μA, 100 μA, 1.0 mA, 2,0 mA |
Degas method | Ohmic heating of the anode |
Category | Vacuum transducer |
Output signal | 0-10 V |
Serial interfaces | RS485 |
