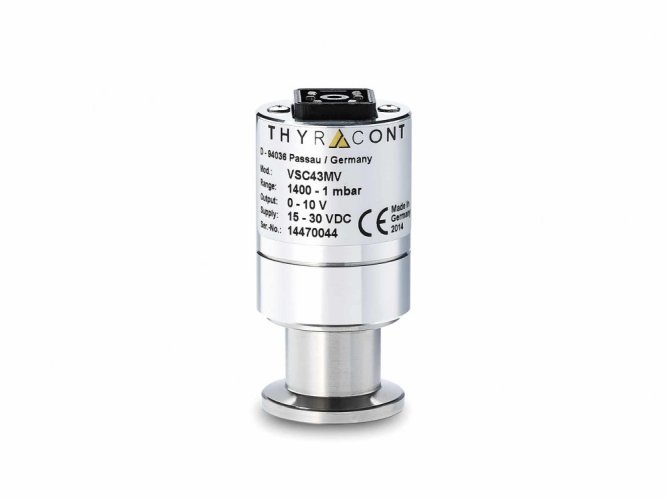

Ceramic, 1400-1 mbar, 0-10 V, linear, DN16KF

Ceramic, 1400-1 mbar, 0-10 V, linear, DN16KF

Ceramic, 1400-1 mbar, 0-10 V, linear, DN16KF

Thyracont

The compact VSC43 piezo transducer is used for measuring absolute pressure in the rough vacuum range. Due to its durable ceramic sensor it is nearly insensitive to dirt and contamination

Product code: VSC43MVShipping and Payment

285 EUR excl. VAT 344,85 EUR incl. VAT

Not in stock (5-7 days) Watch availability - if the goods are not in stock, we normally deliver them in the usual quantity within 7 days from the date of receipt of the order
ks
Thyracont

The compact VSC43 piezo transducer is used for measuring absolute pressure in the rough vacuum range. Due to its durable ceramic sensor it is nearly insensitive to dirt and contamination

Product code: VSC43MVShipping and Payment

Add to favourites Add to compare list
Parameters
Measurement principles Piezo
Gas dependency independent of gas type (Piezo)
Measurement range Torr 1050 – 1 Torr
Measuring range Torr 1050 - 1 Torr
Max, Overpressure resistance 4 bar abs.
Accuracy ± 0.3 % f.s. (nonlinearity, hysteresis, repeatability)
Measurement rate 10 ms
Response time < 20 ms
Materials in contact with vacuum Stainless steel, 1.4305, Al₂O₃, ceramic, FKM
Operating temperature +5…+60 °C
Storage temperature -40… + 70 °C
Voltage supply 15 – 30 VDC
Electrical connection Type Hirschmann, 6pin, male, lockable
Article Number (choice of vacuum connection) stainless steel small flange DN 16 ISO-KF with G1/4- female thread
Dimensions 66 x 30 x 30 mm
Protection class IP40
Weight (kg) 120 g
Category Vacuum transducer
Output signal 0-10 V
Download
man_vsc43mv.pdf (pdf, 416.6 kB)
VSC-AL-vacuum-transducer-Piezo-en.pdf (pdf, 1.9 MB)
man_vsc43ma4.pdf (pdf, 422.5 kB)
