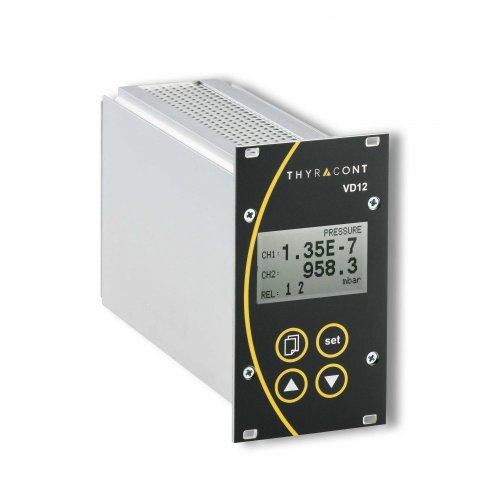

2 channels, 95 - 265V, for Smartline transducers and Analogline transducers with 0-10 V output, USB interface and RS232 interface

2 channels, 95 - 265V, for Smartline transducers and Analogline transducers with 0-10 V output, USB interface and RS232 interface

2 channels, 95 - 265V, for Smartline transducers and Analogline transducers with 0-10 V output, USB interface and RS232 interface

Thyracont

VD12 is an intelligent control unit for applications in apparatus and plant engineering or special equipment construction.
19inch cassette 14 HP x 3 RE.

It allows the simultaneous control of 2 measuring channels.

It can be combined with all Smartline™ and 0-10 V Analogline transducers.

Product code: VD12S2Shipping and Payment

1 046 EUR excl. VAT 1 265,66 EUR incl. VAT

Not in stock (5-7 days) Watch availability - if the goods are not in stock, we normally deliver them in the usual quantity within 7 days from the date of receipt of the order
ks
Thyracont

VD12 is an intelligent control unit for applications in apparatus and plant engineering or special equipment construction.
19inch cassette 14 HP x 3 RE.

It allows the simultaneous control of 2 measuring channels.

It can be combined with all Smartline™ and 0-10 V Analogline transducers.

Product code: VD12S2Shipping and Payment

Add to favourites Add to compare list
Parameters
Operating temperature +5…+50 °C
Storage temperature -20…+60 °C
Voltage supply 95 – 265 VAC, 50/60 Hz
Display LCD graphic display, 51×31 mm, background illumination, resolution 128×64,
Dimensions 25 × 18 × 16 cm
Protection class IP20
Weight (kg) 750g
Power consumption max. 25 W inclusive of transducer
Serial interface Mini-USB, Type B, 5pin, female, Virtual Com Port protocol, RS232: 3.5 mm jack, 3-pole
Switching output 2 x relay, change-over type, SP assignable (VD14S4: 2×2) Phoenix strip terminal 6-pin (VD14S4: 2x) lifetime > 300,000 cycles, 4 A / 250 VAC, 2 A / 45 VDC
Suitable vacuum gauge All Smartline transducers, Analogline Transducers: VSC43MV, VSP63MV, VSP64MV
Versions VD12S2, VD122P, VD124P, VD1253P, VD1263P, VD1277P, VD1288P
scanning rate 2 Hz (0,5 s)
Scanning Rate RS485: 12,5 Hz (80 ms) | 0-10V: 50 Hz (20 ms)
Messeingänge 1 x RS485, SubD, 15pin, male, for Smartline, VD12: 2 x 0 – 10V Amphenol C91E, 6pin, female, for Analogline
Category Vacuum controller
Serial interfaces RS232, USB
