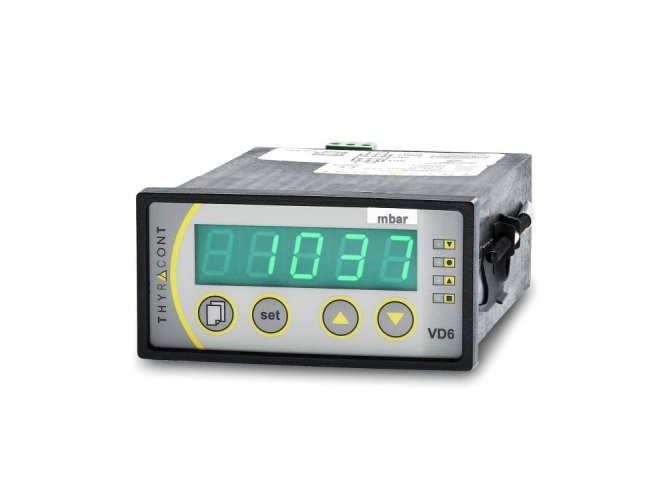

1 channel, 230V, for Analogline transducers with 4-20 mA output, USB, analog output 0-1 V / 0-10V

1 channel, 230V, for Analogline transducers with 4-20 mA output, USB, analog output 0-1 V / 0-10V

1 channel, 230V, for Analogline transducers with 4-20 mA output, USB, analog output 0-1 V / 0-10V

Thyracont

The Thyracont VD6 universal vacuum indicator and controller is designed for panel mounting. A relay monitor on the front panel allows continuous operation control of the two switch points.

Product code: VD6S2230Shipping and Payment

708 EUR excl. VAT 856,68 EUR incl. VAT

Not in stock (5-7 days) Watch availability - if the goods are not in stock, we normally deliver them in the usual quantity within 7 days from the date of receipt of the order
ks
Thyracont

The Thyracont VD6 universal vacuum indicator and controller is designed for panel mounting. A relay monitor on the front panel allows continuous operation control of the two switch points.

Product code: VD6S2230Shipping and Payment

Add to favourites Add to compare list
Parameters
Operating temperature +5…+50 °C
Storage temperature -20…+60 °C
Voltage supply 230 VAC, 50/60 Hz
Serial interface Mini-USB, Typ B, Virtual Com Port Protokoll
Display LED, 13 mm, max. 4 1/2 digits, display unit mbar (Torr on request)
Protection class IP20
Weight (kg) 410 g
Power consumption Max. 3.5 W
Switching output 2 x relay contact, potential free change-over switches, Phoenix strip terminal 3-pole each: 2 A / 250 VAC, 1 A /30 VDC (normal closed); 5 A / 250 VAC, 5 A / 30 VDC (normal open)
Suitable vacuum gauge VCC200MA4, VSC43MA4, VSP63MA4
Scanning Rate 20 Hz (50 ms)
Messeingänge 4 – 20 mA, SubD, 9pole, female
Category Vacuum controller
Serial interfaces USB
